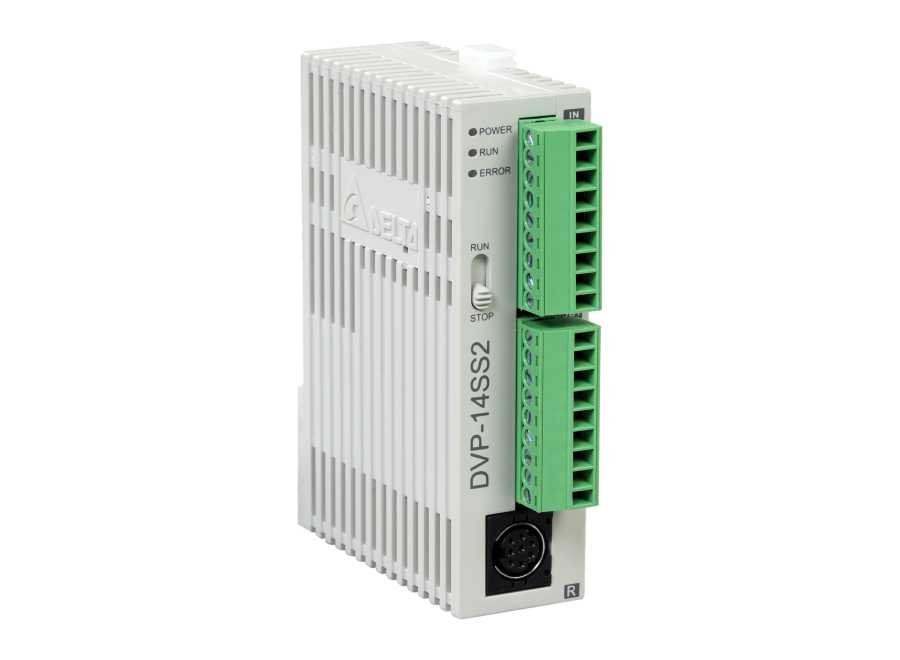

Delta DVP – SS2 Series
The second-generation DVP-SS2 series slim-type PLC retains the fundamental sequential control functions of the original DVP-SS series, while offering faster execution speed and improved real-time monitoring capabilities.
Applications include: Spinning machines, conveyor belts (speed control), and winding machines (tension control).
Available CPUs
DVP14SS211R – The Delta DVP14SS211R is a compact and versatile Programmable Logic Controller (PLC) from Delta’s DVP-SS2 series, designed for small to medium-scale industrial automation applications.
DVP14SS211T – The Delta DVP14SS211T is a compact and versatile Programmable Logic Controller (PLC) from Delta’s DVP-SS2 series, designed for small to medium-scale industrial automation applications.
| Model Series | Delta DVP-S (e.g., DVP-SX2, DVP-SS2, DVP-SA2) |
| CPU Type | 32-bit processor |
| Program Capacity | Up to 16k steps (model-dependent) |
| Data Registers | Up to 10k words |
| Execution Speed | 0.24 µs per basic instruction |
| Communication Ports | RS-232, RS-485, USB, CANopen (optional) |
| I/O Points (Max.) | Up to 512 points with expansion modules |
| High-Speed Counters | Up to 100 kHz |
| Programming Software | WPLSoft, ISPSoft |
| Power Supply | 24V DC |
| Mounting | DIN rail |
| Dimensions (approx.) | 90 x 60 x 55 mm (varies by model) |
| Operating Temperature | 0–55°C |
| Certifications | CE, UL, RoHS |
