Description

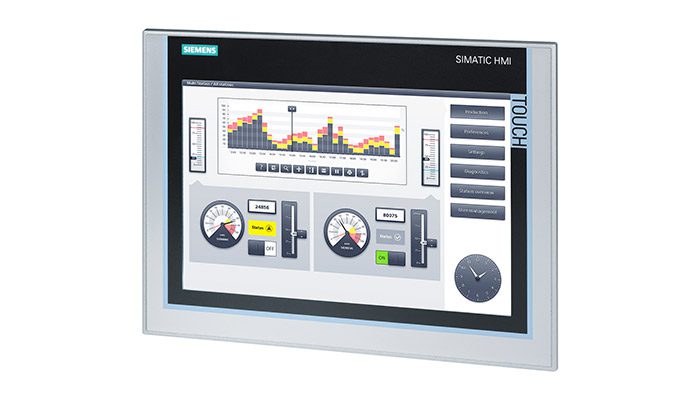

The Siemens SIMATIC HMI TP1200 Comfort is a high-resolution 12-inch operator panel designed for applications where large, clear visualization and detailed process control are essential. Featuring a widescreen TFT display with a resolution of 1,280 × 800 pixels and 16 million colors, it delivers crisp and vibrant graphics for complex process monitoring. The spacious interface allows multiple process screens, trend curves, and alarms to be displayed simultaneously, improving operator efficiency and situational awareness. The TP1200 Comfort features a full touchscreen interface for intuitive operation and is equipped with PROFINET and PROFIBUS ports for seamless integration with Siemens automation systems. A USB port supports fast project loading, firmware updates, and data backups. The IP65-rated front ensures protection against dust and water jets, while LED backlighting maintains brightness with low energy consumption. Configured with WinCC Comfort or Advanced in TIA Portal, the TP1200 Comfort is ideal for high-end machinery, process plants, and control rooms where large-scale, detailed visualization is a priority.
