Delta DVP – SX Series
The slim and compact SX series supports digital input/output and comes with multiple built-in analog I/O channels.
Applications include: PID temperature/humidity control, 2-axis AC motor constant speed control, temperature regulation using analog signals, and factory-wide monitoring (PLC EASY LINK).
Available CPUs

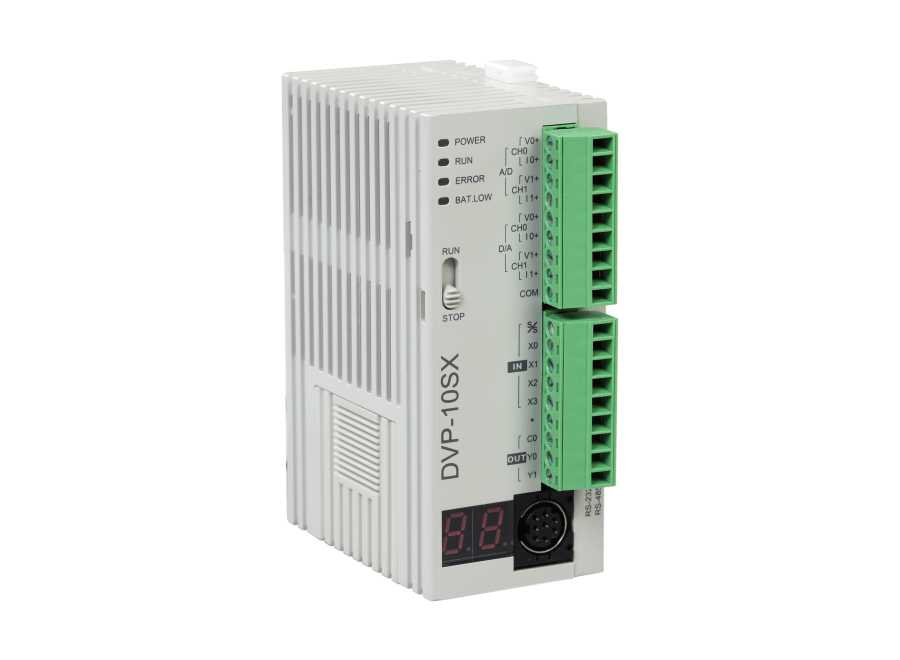

DVP10SX11R – The Delta DVP10SX11R is a compact yet powerful slim-type PLC from the DVP–SX series, combining digital, analog, and high-speed control features in a compact package.
DVP10SX11T – The Delta DVP10SX11T is a compact slim-line PLC from the DVP–SX series, offering mixed digital and analog I/O within a space-saving design.
DVP20SX211T – The Delta DVP20SX211T is a compact, high-performance Programmable Logic Controller (PLC) from Delta’s DVP-SX2 series.
DVP20SX211R – The Delta DVP20SX211R is a compact, high-performance Programmable Logic Controller (PLC) from Delta’s DVP-SX2 series, designed for medium to large-scale automation applications.
DVP28SX211T – The Delta DVP28SX211T is a compact, high-performance Programmable Logic Controller (PLC) from Delta’s DVP-SX2 series.
DVP28SX211R – The Delta DVP28SX211R is a compact, high-performance Programmable Logic Controller (PLC) from Delta’s DVP-SX2 series.
| Model Series | Delta DVP-S (e.g., DVP-SX2, DVP-SS2, DVP-SA2) |
| CPU Type | 32-bit processor |
| Program Capacity | Up to 16k steps (model-dependent) |
| Data Registers | Up to 10k words |
| Execution Speed | 0.24 µs per basic instruction |
| Communication Ports | RS-232, RS-485, USB, CANopen (optional) |
| I/O Points (Max.) | Up to 512 points with expansion modules |
| High-Speed Counters | Up to 100 kHz |
| Programming Software | WPLSoft, ISPSoft |
| Power Supply | 24V DC |
| Mounting | DIN rail |
| Dimensions (approx.) | 90 x 60 x 55 mm (varies by model) |
| Operating Temperature | 0–55°C |
| Certifications | CE, UL, RoHS |
